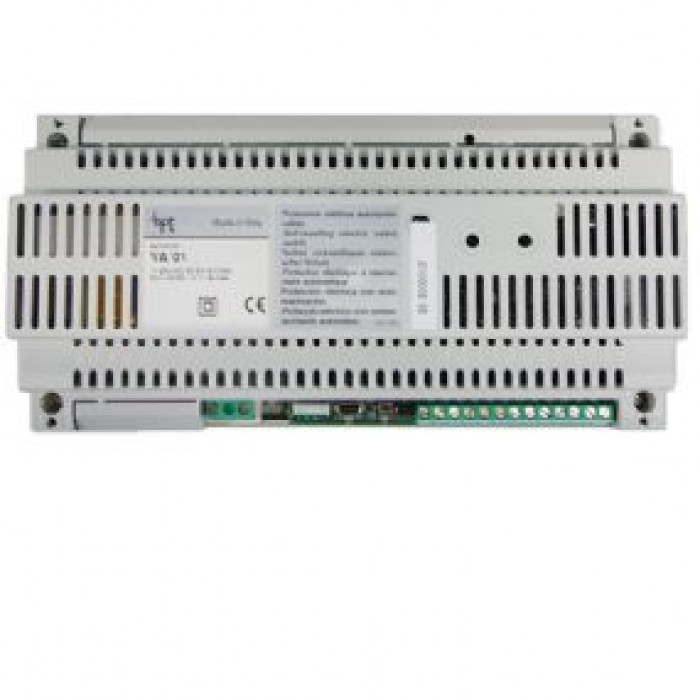

BPT VA/01 Power supplier and Control unit for X1 systems

BPT VA/01 Power supplier and Control unit for X1 systems

- Plastic housing, for installation in electrical control panels (EN50022).

- Dimensions: 12 low-profile DIN modules. Protection rating IP30.

- VSE/301 integrated intercom selector. Complete circuit board for control of entry panels (18 VDC - 1.1A max) and for control of the video entry system riser (20 VDC - 0.8A max).

- Electronic circuit-breaker for protection against overloads/short-circuits. Terminals for control of riser bus and terminals for bus connection to 3 entry panels.

- Open- collector outputs for auxiliary functions (AUX1 and AUX2). RS232 serial ports (for future functions) and mini USB for programming from PC (with LED indicators for 'connection' and 'data being transferred').

- Manual system programming button with indicator LED. Jumper for access to programming of access control devices (cards and keys). Powered by mains circuit 230 VAC 50/60 Hz.

Write a review

Please login or register to review
  • : 15443
  • Brand: BPT
  • Product Code: VA/01
  • Dispatched: 1-2 Working Days
. . .
