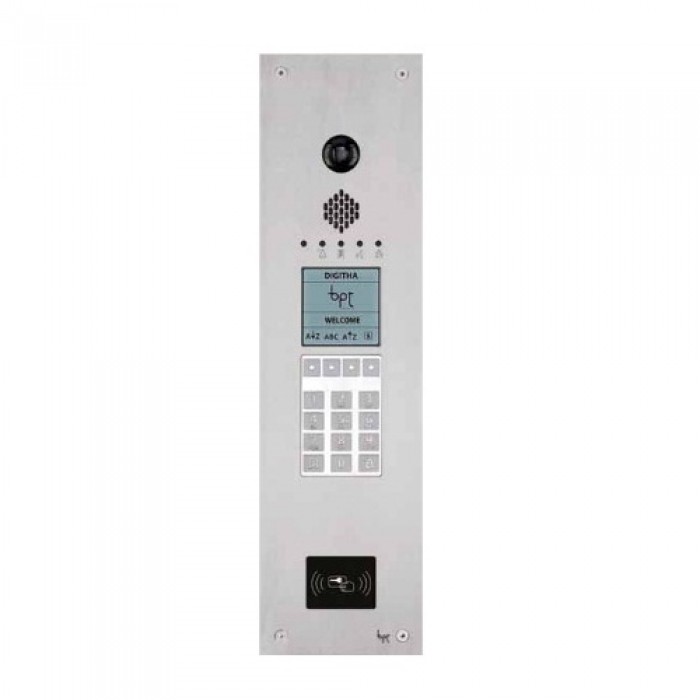

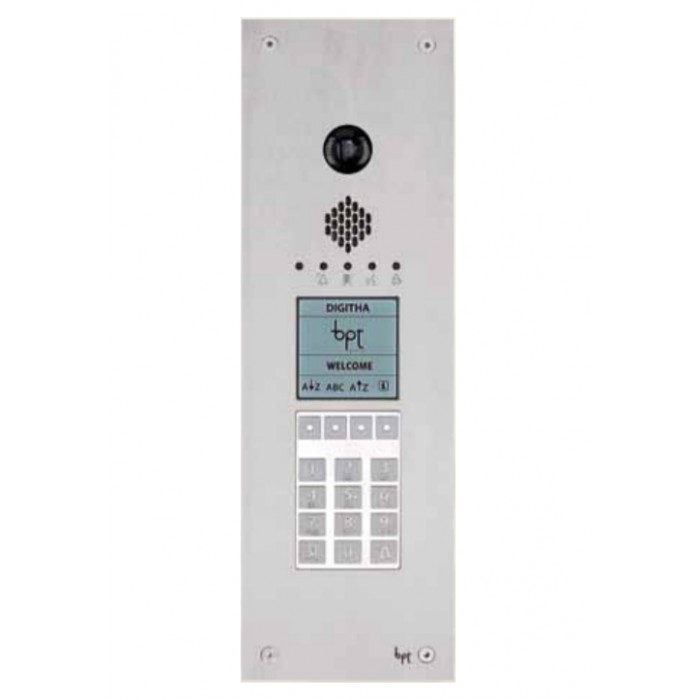

BPT DDVC/08VR Digitha coloured video entry panel for System XiP
- Colour video entry panel with front plate in stainless steel and dual-finish surface, circuit board for XiP system, rFiD reader.
- NSTC/PAL camera, resolution 680x512 with built-in microprocessor for digital signal processing, horizontal angle of aperture 82° with digitally-controlled zoom.
- Caller illumination using 4 high-efficiency LEDs. LCD graphic display, 128x128 pixels, with white backlit screen, 4 function keys for navigating user commands and lists, alphanumeric keypad, 2 function keys for sending coded calls and access code confirmation, built-in proximity key reader.
- "Quick Start" programming of all parameters using on-screen guided menus. Mini USB connector for programming using the software tool.
- DIP-switches for adjustment of the line impedance. Local command for door lock, inputs for door lock release button, door status signalling devices, output connector for activation of external cameras.
- Blue LEDs (8) for backlighting of keys with name label. LEDs for visual control of the status of the system: red "call connected" LED, green "door open" LED, yellow "call in progress" LED, blue "system busy" LED. Protection rating IP 54.
- Dimensions (WxHxD): 140x380x2 mm.
