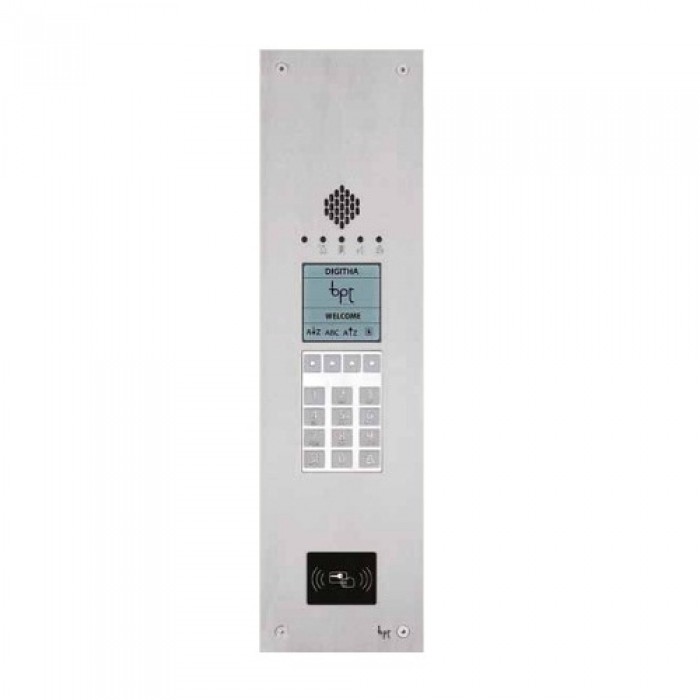

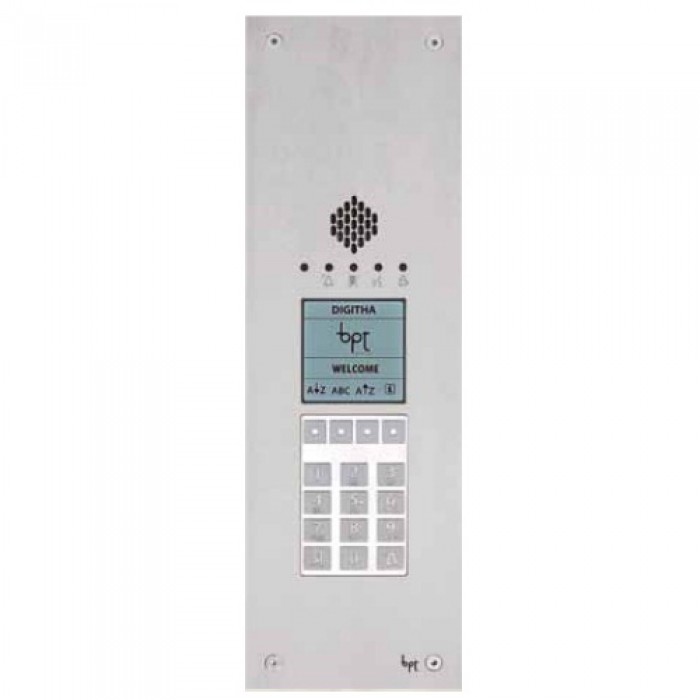

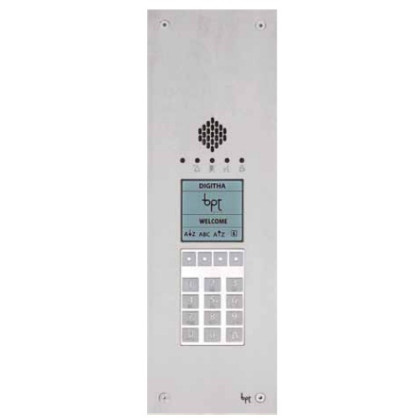

BPT Digitha vandal resistant system XiP audio entry panel with or without proximity window
Audio entry panel with front plate in stainless steel and dual-finish surface, circuit board for XiPsystem, BPT Prox reader.
LCD graphic display, 128x128 pixels, with white back lit screen, 4 function keys for navigating user commands and lists, alphanumeric keypad, 2 function keys for sending coded calls and access code confirmation, built-in proximity key reader.
“Quick Start” programming of all parameters using on-screen guided menus. Mini USB connector for programming using the software tool. DIP-switches for adjustment of the line impedance. Local command for door lock, inputs for door lock release button, door status signalling devices, output connector for activation of external cameras.
Blue LEDs (8) for back lighting of keys with name label. LEDs for visual control of the status of the system: red "call connected" LED, green "door open" LED, yellow "call in progress" LED, blue "system busy" LED.
Protection rating IP 54.
Dimensions (WxHxD): 140x380x2 mm.
