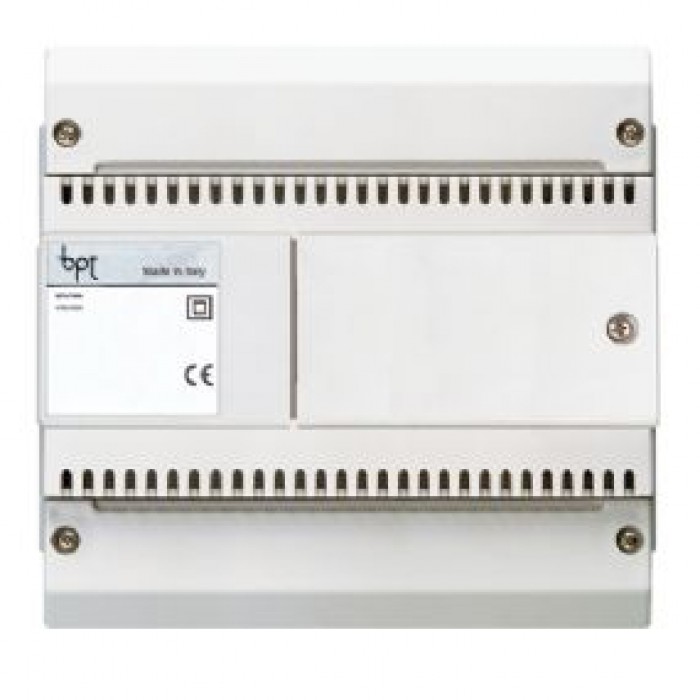

BPT VSE/301 intercom selector

BPT VSE/301 intercom selector

Using the selector, different groups of intercom receivers can be connected with the main line of an X1, X2 systems or system 300 installation. The selector is capable of supplying power to intercom receivers directly from the X1 bus with a single twisted pair.

The intercom system can also work independently without connection to an audio or video entry control system. A total of ten receivers can be activated by the same call, if using a monitor this decreases to nine.


Technical Data
  • Supply voltage: 230V AC 50/60 Hz, +6% - 10%. The transformer is electronically protected against overloading and short-circuiting i.e. no fuses are used.
  • Power demand: 45 VA.
  • Receiver power supply through bus: 20 VDC (terminal block M2).
  • The VSE/301 unit, on its own, can supply: 1 intercom receiver and 9 on standby
  • Same call activation: 10 (if monitors, power 9 of them with local supply)
  • Line transmitting towards receivers: nonpolarized twisted pair (Z = 100 Ohm).
  • The line connecting to main line: non polarized twisted pair (Z = 100 Ohm).
  • Doorbell: continuous 3 s ring.
  • Intercom call note duration: 30 s.
  • Maximum distances: 100 m between selector and last receiver connected to the system (with cable VCM/1D).
  • Maximum number of selectors in a system 300 installation (XA/300LR): 100.
  • Maximum number of selectors in a system X2 installation: 25.
  • Working temperature range: 0 degrees C to +35 degrees C.
  • Dimensions: low-profile 8-unit module for installation on DIN rail


Write a review

Please login or register to review
  • : 12358
  • Brand: BPT
  • Product Code: VSE/301
  • Dispatched: 1-2 Working Days
. . .
