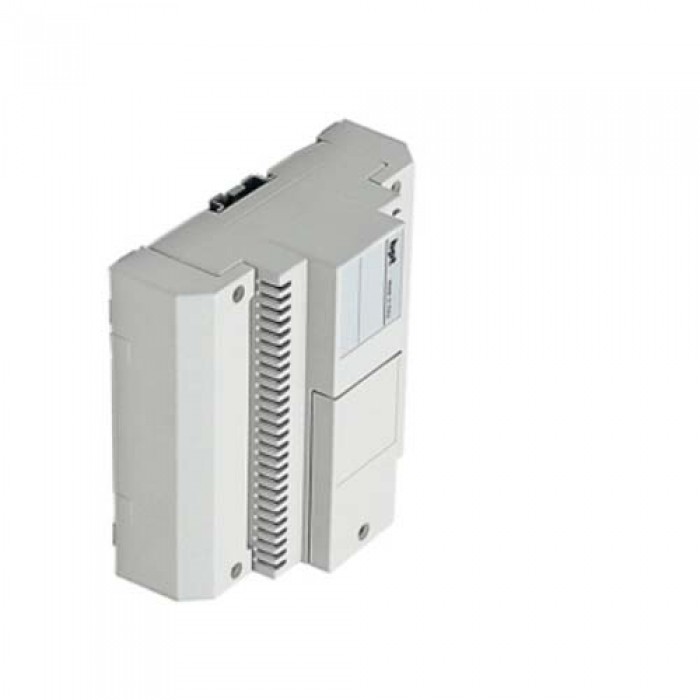

BPT VAS/100MH power supplier for Mitho monitors

This local power supply is intended for use with the Mitho range of video monitors. It consists of a transformer with a power of 10 VA. It is equipped with a rectifier that provides an output voltage at 18 V DC, electronically protected against overloads and short circuits.

This protection automatically restores normal operation of the power supplier after the causes have been removed that activated the protection.

The unit can be installed in on DIN rails or on the surface of the wall using the two plastic tabs provided.

Technical Data

  • Mains supply:230 V AC 50/60Hz
  • Dissipated power: 10 W max
  • Output voltage: 17.5 V DC
  • Continuous current demand:1.7 A
  • Working temperature range: 0 to +35 degrees C

Dimensions83 x 58 x 54 mm (hwd)

Write a review

Please login or register to review
  • : 14729
  • Brand: BPT
  • Product Code: VAS/100MH
  • Dispatched: 1-2 Working Days

Tags: VAS/100MH

. . .
